Ophthalmic Endoscope

Solid Fiber Catheter AS-611

Conventional vitreous surgery under a microscope has the limitation in obtaining a view of fundus. AS-611 can be used for vitreous and glaucoma surgery with a difficult case to obtain a view of fundus such as opacity or rupture of cornea or lens. It is effective for observation of peripheral retina, ciliary body, posterior of iris and for laser photocoagulation surgery.
AS-611 is available in 4 types - 20G, 23G, 25G and 27G. Type 20G, 23G and 25G feature 10,000 pixels.

Sterilized disposable product

Ophthalmic Endoscope

PreVit

Reusable ophthalmic endoscope, applicable to EOG sterilization, STERRAD^® and low temperature steam and formaldehyde (LTSF) sterilization (maximum allowable sterilization cycles: 20 cycles).
PreVit is available in 4 types - 20G, 23G, 25G and 27G.
Type 20G features 15,000 pixels. Type 23G and 25G feature 10,000 pixels.

Applicable to EOG sterilization
Applicable to low temperature hydrogen peroxide gas plasma sterilization (STERRAD^®)
(STERRAD^® is a registered trademark of ASP Japan.)
Applicable to low temperature steam and formaldehyde (LTSF) sterilization

Lacrimal Ductoscope

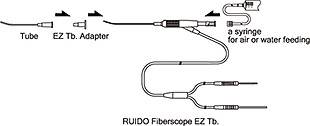

RUIDO Fiberscope

A revolutionary ultra-thin fiberscope that enables examination of inside entire lacrimal duct. RUIDO Fiberscope is effective to observe nasolacrimal duct obstruction. It provides safe and precise lacrimal intubation and is also effective to confirm a result after a treatment.
RUIDO Fiberscope is available in; the standard model with high resolution 10,000 pixels (CK10), the examination model with the tapered insertion part (MT3) and the model with the twin bends at the insertion part (FK10TB).

Applicable to EOG sterilization

Fiberoptic Rigid Nasal Endoscope

Fiberoptic Nasal Endoscope

Fiberoptic Nasal Endoscope does not require a rigid endoscope system. Since the Fiberoptic Nasal Endoscope can be used with our Imaging System (3CMOS HD Camera FC-304 and 3LED Light Source FL-301 or 3CCD Imaging System FT-203F), it does not need to connect to a camera head. Light and high operability. Cost effectiveness, because you do not have to purchase a rigid endoscope system.

Applicable to EOG sterilization
Applicable to low temperature hydrogen peroxide gas plasma sterilization (STERRAD^®)
STERRAD^® is a registered trademark of ASP Japan.

Illumination Endo Probe

Illumination Probe

Reusable Illumination Endo Probe (maximum allowable sterilization cycles: 10 cycles). Illumination Probe is available in 3 types – 20G, 23G and 25G.

Applicable to EOG sterilization

Lacrimal Illumination Probe

DCR Illumination Probe

Reusable by ethylene oxide gas sterilization (EOG).
*Maximum allowable sterilization cycles : 3 cycles
The DCR Illumination Probe is effective in illuminating endoscopic ophthalmic surgery.
This product can be used for dacryocystorhinostomy (DCR) surgery.
The DCR Illumination Probe is to be used with 3LED Light Source FL-301.
